Trephines and Mucosa Membrane Punches

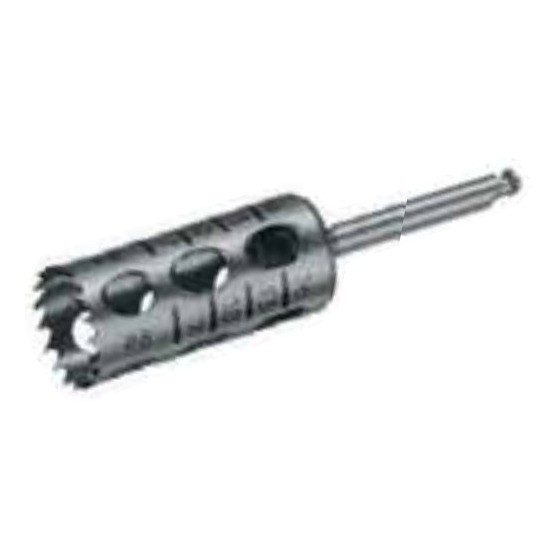

Trephines are used for a gentle and precise removal of an implant. They are for the winning of bone texture as well as to excavate implants accurately. The Trephines are manufactured out of stainless steel. The grading is visibly laser-marked onto the Burs and guarantees a secure depth orientation.
The windows in the body offer a better view for the excavation of the implants and make it easier to reject fragments. The Bur Stand offers a safe and perfectly clean storing and easy positioning through a snap-in system. The marking of the rack allows a fast and uncomplicated identifi cation of the Trephines.
| Cod. sorriso | Modello | Descrizione |
| 2098-15071001 | 08.910.01 | Ø In:1.7mm Ø Out:2.3mm T:7 BL:22mm G:7/10/13/16 Ø Inside: 1.7 mm Ø Outside: 2.3 mm Teeth: 7 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071002 | 08.910.02 | Ø In:2.3mm Ø Out:2.8mm T:7 BL:22mm G:7/10/13/16 Ø Inside: 2.3 mm Ø Outside: 2.8 mm Teeth: 7 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071003 | 08.910.03 | Ø In:2.8mm Ø Out: 3.3mm T: 9 BL:22mm G:7/10/13/16 Ø Inside: 2.8 mm Ø Outside: 3.3 mm Teeth: 9 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071004 | 08.910.04 | Ø In:3.3mm Ø Out:3.8mm T:9 BL:22mm G:7/10/13/16 Ø Inside: 3.3 mm Ø Outside: 3.8 mm Teeth: 9 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071005 | 08.910.05 | Ø In:4.0mm Ø Out:4.5mm T:11 BL:22mm G:7/10/13/16 Ø Inside: 4.0 mm Ø Outside: 4.5 mm Teeth: 11 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071006 | 08.910.06 | Ø In:4.3mm Ø Out:4.8mm T:11 BL:22mm G:7/10/13/16 Ø Inside: 4.3 mm Ø Outside: 4.8 mm Teeth: 11 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071007 | 08.910.07 | Ø In:4.8mm Ø Out:5.8mm T:9 BL:22mm G:7/10/13/16 Ø Inside: 4.8 mm Ø Outside: 5.8 mm Teeth: 9 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071009 | 08.910.08 | Ø In:6.0mm Ø Out:7.0mm T:12 BL:22mm G:7/10/13/16 Ø Inside: 6.0 mm Ø Outside: 7.0 mm Teeth: 12 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071010 | 08.910.09 | Ø In:7.0mm Ø Out:8.0mm T:18 BL:22mm G:7/10/13/16 Ø Inside: 7.0 mm Ø Outside: 8.0 mm Teeth: 18 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071011 | 08.910.10 | Ø In:8.0mm Ø Out:9.0mm T:18 BL:22mm G:7/10/13/16 Ø Inside: 8.0 mm Ø Outside: 9.0 mm Teeth: 18 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071012 | 08.910.11 | Ø In:9.0mm Ø Out:10.0mm T:18 BL:22mm G:7/10/13/16 Ø Inside: 9.0 mm Ø Outside: 10.0 mm Teeth: 18 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071013 | 08.910.12 | Ø In:10.0mm Ø Out:11.0mm T:19 BL:22mm G:7/10/13/16 Ø Inside: 10.0 mm Ø Outside: 11.0 mm Teeth: 19 Body Length: 22 mm Grading: 7/10/13/16 |
| 2098-15071008 | 08.910.13 | Ø In:5.0mm Ø Out:6.0mm T:11 BL:22mm G:7/10/13/16 Ø Inside: 5.0 mm Ø Outside: 6.0 mm Teeth: 11 Body Length: 22 mm Grading: 7/10/13/16 |
Pagina del catalogo Helmut Zepf: 07-10
